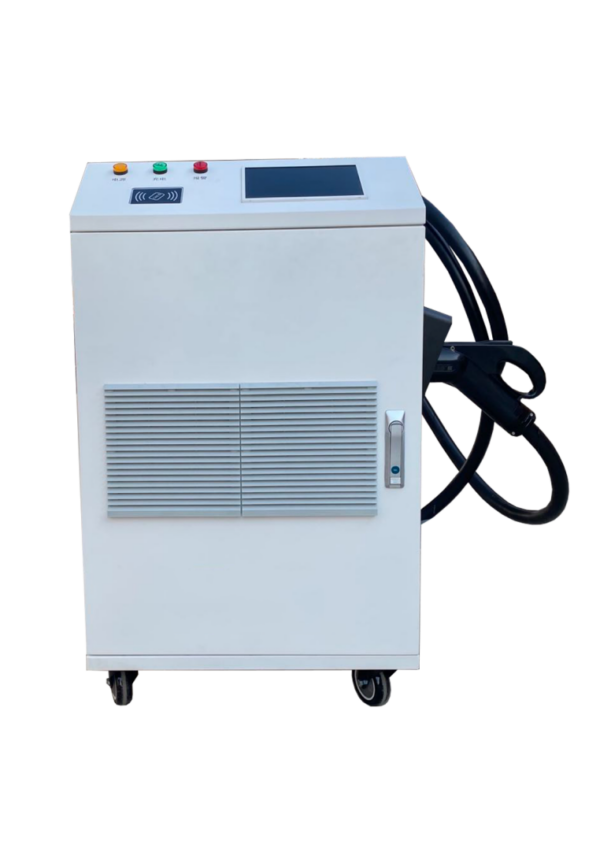

20kW-80kW Portable DC Fast Charger Mobile DC EV Charger Portable DC EV Charger

  • Mobile DC EV Charger

  • Support V2G/V2L/V2H

  • Configurable output power settings

  • OCPP 1.6J Compliant

  • CE Certified

SKU: WY-BXDC20/30/40/60/80 Categories: ,

WY-BGDC Serise Portable DC Fast Charger Overview:

This brand-new WY-BXDC series portable DC Fast charger combines efficiency, flexibility, and portability, redefining the new standard for electric vehicle charging with 20kW-80kW large power range. It not only perfectly balances high efficiency and portability but also redefines the boundaries of electric vehicle charging with a series of unique product features.

Imagine no matter where you are—whether it’s in your home garage, company parking lot, outdoor camping, or on a long journey—our portable DC EV charger can easily accompany you with a simple lift. Its compact and sturdy design ensures stability even during movement, making charging no longer limited by location and truly achieving “charging freedom.”

Product Features:

  • Ultra-lightweight Design: Utilizing advanced materials and technology, it achieves a lightweight design. Even the highest power version can be easily lifted without adding to your travel burden.

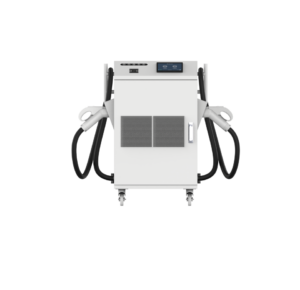

  • Flexible Single or Dual Connectors: Meets the needs of different vehicle models, from household cars to large commercial vehicles, providing the most suitable charging method.
  • V2G/V2L/V2H Supported:Not only can it charge vehicles, but it can also supply power to the grid, supporting renewable energy integration and energy storage. In emergencies, it can also act as a mobile power source for home appliances and outdoor equipment, ensuring continuous power and showcasing infinite possibilities.
  • Parallel Charging Technology: Multiple chargers can be used in parallel, significantly improving charging efficiency, suitable for fleet management or rapid recharging at large events.
  • Configurable Output Power Settings: Flexibly adjust output power according to vehicle needs or grid conditions, ensuring the charging process is both fast and safe.
  • RFID Reader and Optional Credit Card Reader: Simplifies user authentication processes, supports contactless payment, and enhances the charging experience.
  • OCPP 1.6J Standard Compliance: Seamlessly connects with global mainstream charging management platforms, enabling remote monitoring, data analysis, and intelligent dispatch.
  • FRU Onboard Diagnostics: Quickly locate faults, reduce maintenance difficulty, and ensure the equipment is always in optimal condition.
  • Easy Maintenance Design: Modular design facilitates user self-replacement of parts, reducing downtime and maintenance costs.
  • Multiple Safety Protections: Includes over current protection, over voltage protection, short-circuit protection, etc., ensuring the charging process is safe and reliable.
  • CE Certification: Passed rigorous safety and quality tests, providing users with assured usage protection.

Portable DC charger 20-80kwPortable DC charger 20-80kwPortable DC charger 20-80kw Portable DC charger 20-80kwPortable DC charger 20-80kwPortable DC charger 20-80kw

Specifications:

Model No. WY-BXDC40 WY-BXDC80
Rated Power 40KW 80KW
Input 400VAC / 480VAC (3P+N+PE) || 50/60Hz
Output Voltage 200 – 1000VDC
Output Current CCS1– 120A || CCS2 – 120A ||
CHAdeMO – 120A || GBT- 120A
CCS1– 200A || CCS2 – 200A ||
CHAdeMO – 200A || GBT- 200A
Connectors CCS1 || CCS2 || CHAdeMO || GBT Single Plug
Efficiency ≥94% at nominal output power
Power Factor >0.98
Operating Temperature -30°C to 55°C
Altitude < 2000m
Working || Storage Humidity ≤ 95% RH || ≤ 99% RH (Non-condensing)
Display 7″LCD with touch screen
RFID System ISO/IEC 14443A/B
Dimensions (L x D x H) 650mm x 750mm x 1140mm 650mm x 750mm x 1140mm
Ingress Protection IP54 || IK10
Power Electronics Cooling Air Cooled
Weight 120kg 160kg
Insulation (input – output) >2.5kV
Regulatory Compliance CE || EMC: EN 61000-6-1:2007, EN 61000-6-3:2007/A1:2011/AC:2012
Charging Protocol Standards Mode 4 – IEC-61851, ISO-15118, DIN 70121Mode 4 – CHAdeMO 2.0 Mode 4 – GB/T 18487 2023, GB/T 20234 2023, GB/T 27930 2023
Length of charging cable 5m
Communication protocol OCPP 1.6J
Access Control RFID: ISO/IEC 14443A/B || Credit Card Reader (Optional)
Communication Ethernet – Standard || 3G/4G  ||  Wifi (Optional)
Electrical Safety: GFCI RCD 30 mA Type A
Electrical Safety: Surge Protection 20 kA
Electrical Safety General Over Voltage, Under Voltage, Over Current, Missing Ground
Electrical Safety: Output Short Output power disabled when output is short circuited
Electrical Safety Temperature Temperature Sensors @ Charge Coupler and Power Electronics
Emergency Stop Emergency Stop Button Disables Output Power
Weight 120 kg
Dimensions 65 × 70 × 114 cm
