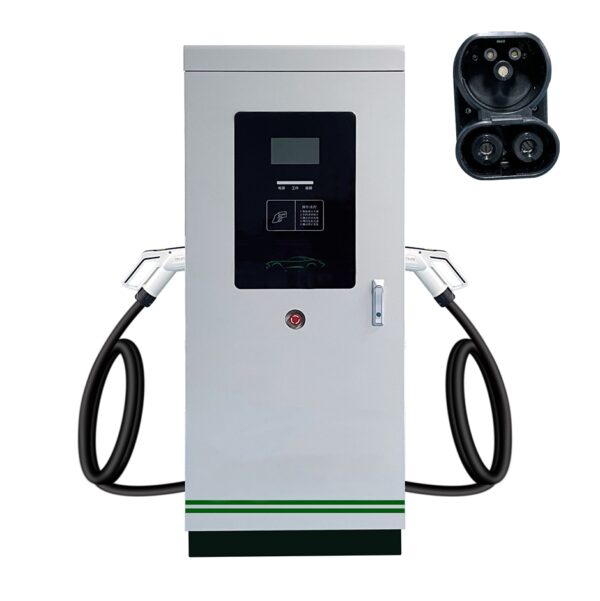

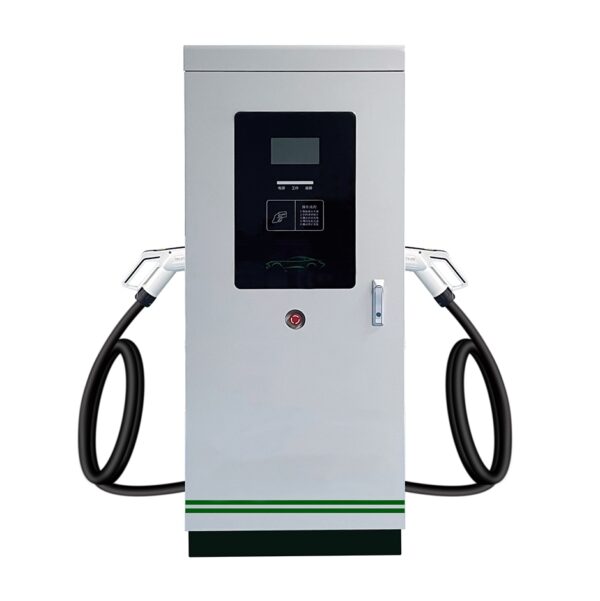

120KW-320KW DC EV Charger Ultra Fast Level 3 DC EV Charger

  • Supports IC card authentication for completing charging transactions, featuring a comprehensive card management system.

  • Supports Ethernet and QR code scanning to access the app for charging transactions.

  • Multiple charging modes such as fully automatic charging, time-based, quantity-based, or amount-based charging.

  • Equipped with a 7-inch display screen to show real-time charging status.

  • Includes indicators for power, charging, and fault status.

SKU: YM-DC120/180/240/320 Categories: ,

This DC EV Charger offers four high-power options: 120KW, 160KW, 240KW, and 320KW, suitable for different models of electric vehicles and is at the forefront of EV charging technology. It provides a fast, efficient, and secure charging solution that meets the needs of modern EV users. Whether you’re on a long-distance trip or commuting daily, it can quickly replenish your electric vehicle’s energy in a short time. Its powerful charging capability significantly reduces charging time, saving users valuable time. Whether you’re a novice or experienced electric vehicle user, you can easily enjoy the convenience and comfort brought by this charging station.

Features:

  1. Supports IC card for identity verification, allowing users to complete charging transactions with a simple card swipe, without cumbersome operation steps. Additionally, it has a comprehensive card management system in place to ensure the security and accuracy of user information.

  2. Supports Ethernet connection, and users can enter our app for charging transactions by scanning a QR code. Whether on a smartphone or at the charging station, users can easily complete charging payments and enjoy convenient services.

  3. Provide multiple options including automatic full charging, time-based charging, quantity-based charging, and amount-based charging. Users can choose the appropriate charging mode according to their actual needs, achieving a personalized charging experience.

  4. Equipped with a 7-inch display screen. Users can view real-time information such as charging status, remaining battery level, and charging time on the screen, ensuring full control over the charging process.

  5. Designed power, charging, and fault status indicator lights for the charging station. Users can quickly understand the operational status of the charging station through these indicator lights, promptly identifying and addressing any potential issues.

  6. Equipped with comprehensive safety protection features, including short-circuit protection, over-current protection, over-voltage protection, leakage protection, and lightning protection, ensuring both user and equipment safety during the charging process.

  7. Wide Compatibility, support multiple electric vehicle brands and models, catering to both household cars and commercial vehicles with ease.

  8. User-friendly Design: Features a sleek and intuitive design, with an easy-to-understand operating interface, allowing users to complete charging operations effortlessly. Additionally, we provide thoughtful customer service to address various issues users may encounter during usage.

Applicable Scenarios:

This product is suitable for locations such as highway service areas, large parking lots, logistics parks, commercial centers, hotels, office building and other places requiring high-power charging services, providing electric vehicle users with a fast, efficient, and convenient charging experience.

  1. Public Parking Lots: Providing convenient charging services for electric vehicle users. The layout of multiple charging stations within the parking lot can  cover more parking spaces, meeting the needs of a larger number of users.
  2.  Commercial Areas: In commercial areas such as shopping centers, restaurants, office building and cinemas, provide convenient charging services for electric vehicle users who come to shop, dine, work or watch movies. The addition of DC Fast Chargers can attract more electric vehicle users to these locations, promoting the development of commercial areas.
  3. Residential Communities: Allowing residents to conveniently charge their electric vehicles at home. The presence of DC chargers can reduce residents’ reliance on public charging facilities, enhancing the convenience of daily life.
  4.  Roadside Service Areas: Such as highway service areas and gas stations, providing charging services for electric vehicle users on long-distance drives. These charging stations ensure that electric vehicle users can meet their energy needs during long trips, improving the convenience of travel.

Technology Support:

Offer installation, commissioning, and maintenance services to ensure proper operation and maintenance.

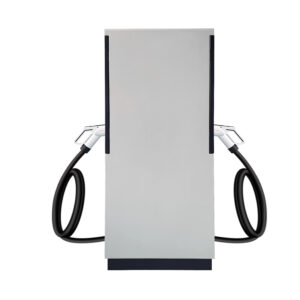

dc ev charger dc ev charger back side dc ev charger left side

Specifications:

Datasheet

Model No.

YM-DC120

YM-DC180

YM-DC240

YM-DC320

Output

Rated Power 120KW 180KW 240KW 320KW
Maximum Current 250A
Output Voltage 200-1000V DC

Input

Power Supply 3P+N+PE
Rated Voltage 400V AC
Frequency 50/60Hz

User Interface

Charge Connector CCS2(CCS1/CHAdeMO/GBT Optional)
Cable Length 5M
Enclosure Galvanized Steel
LED Indicator Green/Yellow/Red
LCD Display 7” color touch screen
RFID Reader Mifare ISO/IEC 14443 A
Start Mode Plug&Play/RFID card/App
Emergency Stop YES
POS Terminal Optional

Communication

WIFI YES
Ethemet YES
3G/4G YES
OCPP OCPP 1.6 Json (OCPP 2.0 optional)

Electrical Parameter

Efficiency Max 95%
Power Factor ≥0.99 @ 50%~100% loading
THD ≤5% @ 50%~100% loading
Ripple Factor ≤±1%

Safety

Energy Meter MID certified
RCD Type A
Ingress Protection IP54
Impact Protection IK08
Certification CE
Certification Standard  EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Electrical Protection Over current protection, Residual current protection,
Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
Warranty 2 years

Environment

Installation Floor-stand
Cooling Method Fan Cooling
Noise ≤60dB
Work Temperature -30℃~+55℃
Work Humidity 5%~95%
Work Altitude <2000m

Package

Product Dimensions 700*440*1650mm (W*D*H)
Package Dimensions 800*540*1750mm (W*D*H)
Net Weight 220KG 250KG
Gross Weight 260KG 290KG
External Package Wood case



Weight 220-250 kg
Dimensions 70 × 44 × 165 cm
120KW

DC fast charger with the power of 120KW, Maximum Current 250A and CCS 2 cable, Output voltage 200-1000V DC.

180KW

DC fast charger with the power of 180KW, Maximum Current 250A and CCS 2 cable, Output voltage 200-1000V DC.

240KW

DC fast charger with the power of240KW, Maximum Current 250A and CCS 2 cable, Output voltage 200-1000V DC.

320KW

DC fast charger with the power of 320KW, Maximum Current 250A and CCS 2 cable, Output voltage 200-1000V DC.
