Electric Vehicle Charging Methods

As electric vehicles become more popular, charging them has become a daily routine for EV owners. But do you know how many different ways there are to charge an electric vehicle? Today let’s explore the various electric vehicle charging methods available.

1. Super Fast Charging

The charging speed is directly related to the power of the charging station. Tesla’s Superchargers, a typical example, have more than double the power of other fast chargers, and the vehicles and batteries can handle the high power. According to media tests, after upgrading, the charging efficiency of Tesla’s Superchargers has significantly improved. Comparing Tesla V3 and V2 Superchargers, the time to charge from 3% to 55% was reduced by 35%, and from 3% to 90% by 16%.

Advantages:
1. Fast charging
2. Well-managed
3. No occupancy issues
Disadvantages:
1. High cost
2. Expensive charging
3. Requires compatible vehicles
4. Not universally applicable
Currently, domestic car brands are striving to catch up with “supercharging” speeds.

2. DC Fast Charging

DC fast charging offers high-speed charging and is the main method used outside of home charging. Most public charging stations deploy DC fast chargers.

Characteristics:
1. Fast chargers typically appear as “big boxes”
2. Some multi-gun fast chargers dynamically allocate charging power
3. Slim fast chargers are split-type, with a nearby “big box” or even “big house” for power distribution
Advantages:
1. Relatively fast charging
2. Universally compatible with all vehicles
3. Moderate pricing due to competition
Disadvantages:
1. Variable site and management quality
2. High investment costs

3. AC Slow Charging

In slow charging, the vehicle’s onboard charger (OBC) plays the main role, with the slow charger serving as a connector to bring AC power into the vehicle. Therefore, slow chargers are small and light, mainly containing control and safety devices. The standard AC slow chargers have two main power ratings: 3.5kW, 7kW and 11kW, compatible with all vehicles. Many new cars now come with 21kW slow chargers to improve charging speed as vehicle batteries increase in size.

Advantages:
1. Safe and can fully charge the battery
2. Low investment, easy to spread
3. Does not occupy space or parking slots
Disadvantages:
1. Slow charging speed
2. Relatively high cost
3. Higher parking and charging costs

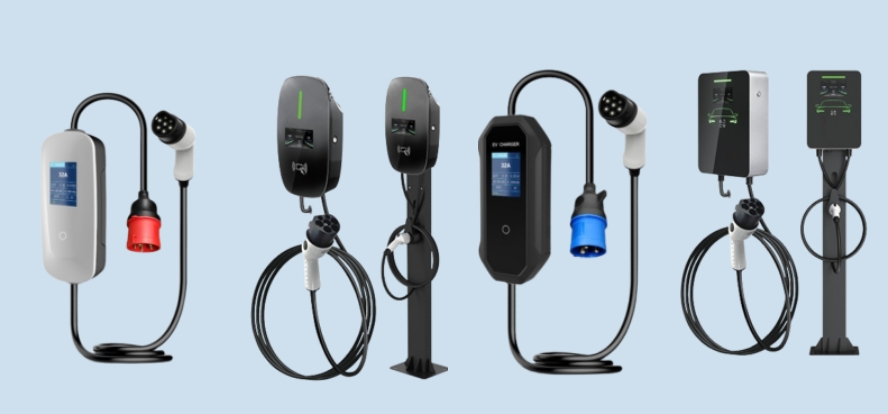

4. Portable EV Chargers (Mode 2)

Portable EV chargers are a type of slow charger, functioning similarly but portable for convenient use. However, for safety reasons, their power is lower.

Advantages:
1. Convenient, can charge almost anywhere
2. Can fully charge the battery
Disadvantages:
1. Extremely slow charging
2. Charging duration is calculated in days
3. Some safety risks

5. Battery Swapping

Battery swapping involves removing the depleted battery and replacing it with a fully charged one, similar to changing AA batteries in a toy car. NIO uses battery swapping as a routine operation, and some taxis are also piloting this method. Due to the small scale, the cost is higher, with electricity costs about 0.3 yuan per kilometer, more expensive than charging but saving time.

Advantages:
1. As fast as refueling
2. Vehicle-battery separation allows extended services
3. Takes up less space than charging stations
4. Helps with off-peak electricity use
Disadvantages:
1. Increases vehicle cost
2. Difficult to popularize
There are national standards and subsidies for battery swapping, and many battery and car manufacturers, as well as third-party operators, are following up. The development speed is expected to increase.

6. Wireless EV Charging

Wireless EV charging uses electromagnetic induction, where the transmitter coil generates a magnetic field when powered, inducing a current in the receiver coil, which then charges the battery through the onboard charger. While widely used in small electronic devices like phones, wireless charging for EVs is still in the application stage for specific scenarios.

Advantages:
No need to plug in the charging gun
Disadvantages:
1. Increased costs for both the vehicle and the charger
2. Increased charging losses
3. Requires precise parking alignment
4. Charging can be affected by foreign objects

7. Pantograph EV Charging

Pantograph EV charging is mainly used for electric buses, allowing flexible dynamic adjustment of charging power based on the needs of bus depots, generally providing high power.

8. Other Charging Methods

1. Vehicle-to-Vehicle Charging
∎Fast Charging: Commercial service provided by specialized power supply vehicles for on-site charging or emergency rescue.
∎Slow Charging: Non-commercial, where vehicles with discharge capabilities charge other cars, usually for temporary rescue among car owners.
Advantages:
∎Convenient for emergency rescue
Disadvantages:
∎High comprehensive costs
∎Significant power loss

2. Vehicle Towing Charging
Using external force to tow the vehicle and charge through the energy recovery system. In remote areas without power, passing vehicles can assist with towing to charge the battery. Testing shows good charging results, with higher towing speeds leading to higher charging power, but for safety, low-speed driving is necessary.
Advantages:
∎Fast charging
∎Effective for rescue
Disadvantages:
∎Consumption exceeds recovery
∎Collision risk

3. Solar Charging
Uses solar panels to generate electricity and charge the vehicle. This is the cleanest and most environmentally friendly method but is currently impractical due to low efficiency and high costs, suitable only for limited scenarios.
Advantages:
∎Clean and environmentally friendly
∎Low usage cost
Disadvantages:
∎Very low efficiency
∎High equipment cost
∎Large and heavy equipment

4. Large Power Banks and Gasoline Generators
Not cost-effective, as these devices take up space and add weight, increasing vehicle energy consumption for long trips.
